[UPDATED 2023] 300-510 dumps Free Test Engine Verified By Certified Experts

Realistic 300-510 Accurate & Verified Answers As Experienced in the Actual Test!

What is the duration, language, and format of Implementing Cisco Service Provider Advanced Routing Solutions (300-510 SPRI) Exam

Duration of Exam: 90 minutes
Format: Multiple choice
Validity: 3 years
Language of Exam: English

Cisco 300-510 Exam Certification Details:

Duration	90 minutes
Exam Price	$300 USD
Number of Questions	55-65
Exam Code	300-510 SPRI

QUESTION 41

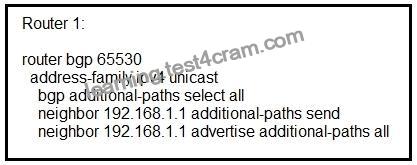

Refer to the exhibit. Which statement about this configuration is true?

Router 1 sends and receives multiple best paths from neighbor 192.168.1.1

Router 1 sends up to two paths to neighbor 192.168.1.1 for all routes

Router 1 receives up to two paths from neighbor 192.168.1.1 for all routes in the same AS

Router 1 receives only the best path from neighbor 192.168.1.1

QUESTION 42
Refer to the exhibit.

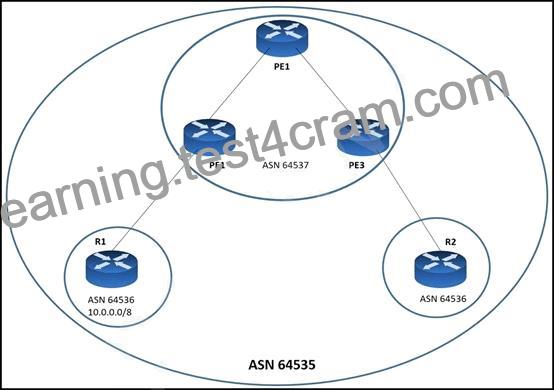

A network engineer has divided AS into confederations. Due to repeated ASN, when the 10.0 0.0/8 prefix from R1 arrives to R2, BGP automatically rejects it. What should the engineer do to fix the problem so that BGP allows that prefix on R2?

Configure the command as-override on R1.

Configure the command allowas-in on R2.

Configure the command allowas-in on all the PE routers.

Configure the command as-override on R2.

QUESTION 43
Refer to the exhibit.

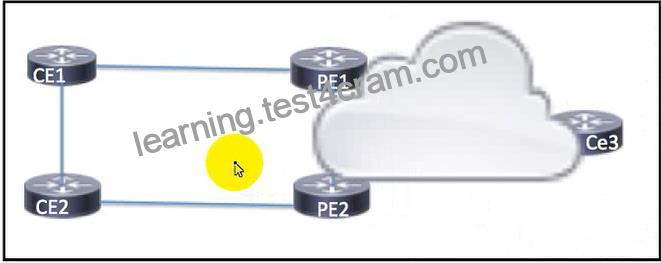

Refer to the exhibit. CE1 and CE2 use connectivity over the service provider cloud to reach CE3 In the event of a link failure in the service provider cloud which BGP feature relies on IGP convergence to quickly assist in the installation of a backup path?

BGP graceful restart

BGP route dampening

BOP PIC core

BGP confederations

QUESTION 44
Refer to the exhibit.

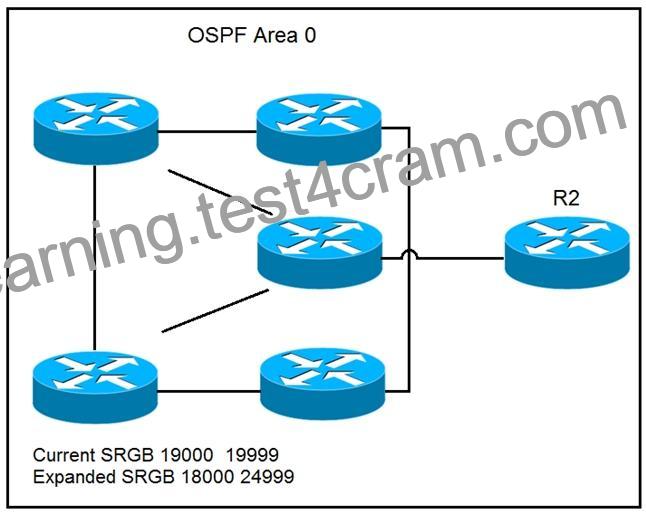

A network operator wants to expand the segment routing global block in upcoming maintenance. The operator must ensure that the changes to the segment routing global block have no adverse impacts on the prefix-sid associated with the loopback0 interface used within the OSPF domain.

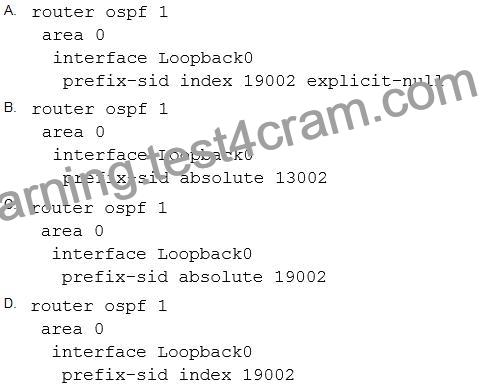

Which command can the operator use to enforce R2 to have a strict prefix-sid assignment to loopback0?

Option A

Option B

Option C

Option D

QUESTION 45
Refer to the exhibit.

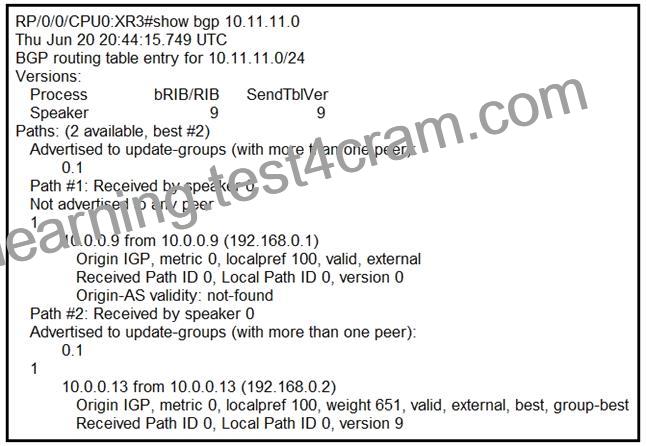

A network operator is getting the route for 10.11.11 0/24 from two upstream providers on
#XR3. The network operator must configure #XR3 to force the 10.11.11.0/24 prefix to route via next hop of 10.0.0.9 as primary when available. Which of these can the operator use the routing policy language for, to enforce this traffic forwarding path?

weight of 0 on the prefix coming from 192.168.0.2

lower local preference on the prefix coming from 192.168.0.2

higher local preference on the prefix coming from 192.168.0.1

weight of 100 on the prefix coming from 192.168.0.1

Because Weight is the first attribute in path selection algorithm and is 0 for eBGP routes by default. If we set it to 0, router will continue from weight to the bottom, and when comparing neighbor router IDs it will find 192.168.0.1 less than 192.168.0.2 and st path will be selected as the best

QUESTION 46
Refer to the exhibit.

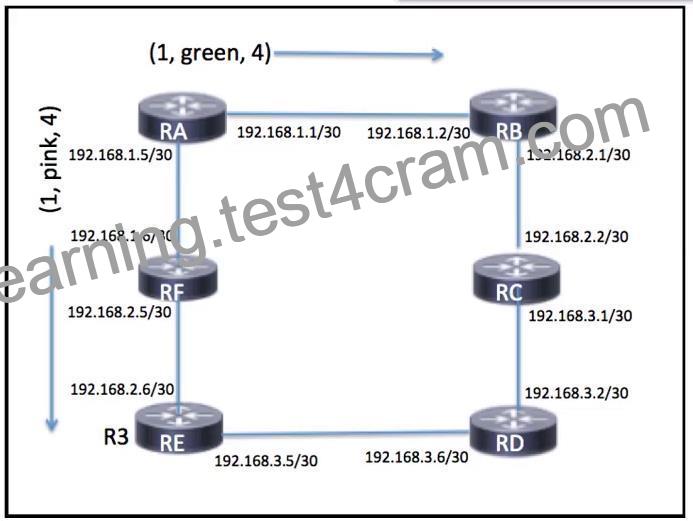

The green policy is designed with low delay, and the pink policy is designed with low cost. What is the next hop for node A on its way to node D, with the objective of achieving a low delay?

192.168.3.2

192.168.1.6

192.168.3.6

192. 168.1.2

QUESTION 47
Drag and Drop Question

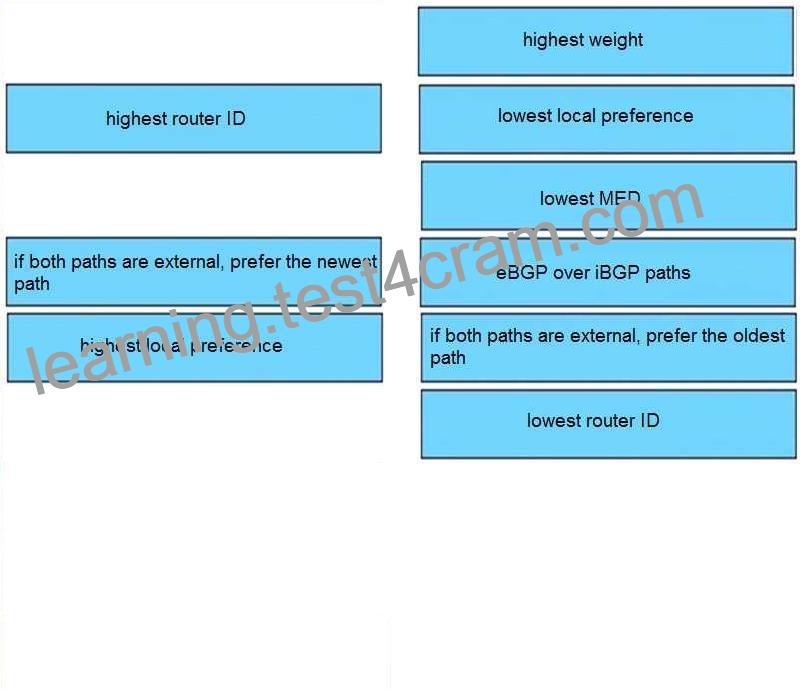

Drag and drop the attributes for the BGP route selection on the left into the correct order on the right. Not all options are used.

Explanation:
https://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol-bgp/13753-25.html

QUESTION 48
Refer to the exhibit.

A network operator must stop 10.33.33.33/32 from being redistributed into Level 1 router XR1. Which configuration meets this need?

Option A

Option B

Option C

Option D

QUESTION 49
Refer to the exhibit.

Refer to the exhibit. MPLS traffic from 192.168.4.0/24 to 192.168.5.0/24 is failing to pass over the link from R4 to R2. The engineer verified that:
Cisco Express Forwarding Is enabled on all routers.
All routers reach all networks via OSPF.
MPLS traffic from 192.168.1.0/24 to 192.168.3.0/24 is passing normally over the link from R1 to R2.
Which action resolves the issue?

On router R4, remove the mpls ip command on the s/O/O/2 interface.

On router R2, configure the mpls ip command on the SIO/O/4 interface.

On router R4, configure the mpls label protocol Idp command on all serial interfaces.

On router R2, configure the mpls label protocol Idp command on the interface.

QUESTION 50
Refer to the exhibit.

Refer to the exhibit. After a recent network implementation project, customer A is performing stress testing to verify network redundancy at the branch office connected to R4. When the link from R2 is shut oown as shown, the SLA tracking object fails and the cost of the link between R2 and R4 increases to 100. However, a traceroute operation from a PC in the Branch office shows that traffic to HQ is still routed via R2. Which solution corrects the problem and optimizes traffic flow via R3 without creating operational overhead?

Configure two OSPF processes on R2 and R3 and redistribute traffic between them.

Redistribute routes from BGP to OSPF as type El.

Use multiarea adjacency to extend Area 10 to the link between R2 and R3.

Create a virtual channel from R3 to R4.

QUESTION 51
A network engineer is troubleshooting OSPF multiarea.
Which Cisco IOS XR feature should the engineer use in order to streamline OSPF issue?

hierarchical CLI

routing process enabled by default on all interfaces

DR support for topology management

show lp ospf topology command

QUESTION 52
Refer to the exhibit.

Routers RA and RB are IS-IS peers configured for NSF but router RC is an IS-IS peer without NSF capability If RA undergoes processor switchover what is the effect on the network environment?

If RC is operating without the Cisco configuration option all three routers tear down their peering relationships and re-establish peering

All peer relationships remain up and the link-state database is unchanged

All peer relationships remain up, but the link-state database is rebuilt on each device

If RC is operating without the Cisco configuration option only 2 routers tear down their peering relationships and re-establish peering

QUESTION 53
Refer to the exhibit.

Which effect of this configuration is true?

It sets the keepalive timer to 30 seconds and the hold timer to 240 seconds.

It sets the keepalive timer to 30 milliseconds and the hold timer to 240 milliseconds

It sets the hold timer to 30 milliseconds and the keepalive timer to 240 milliseconds

It sets the hold timer to 30 seconds and the keepalive timer to 240 seconds

Reference:
html#wp1552800140

QUESTION 54
Refer to the exhibit. Router 1 and Routed have shared routes in the OSPF database but the routes are missing from their routing tables. Checking me prefix-list configuration on both routers, the engineer confirmed all networks are allowed. What action should the engineer take to fa the problem?
