Download Free HP HPE3-U01 Real Exam Questions Download [Q34-Q50]

Explanation
IPv4 or Internet Protocol version 4 is the fourth version of the Internet Protocol that is used to identify and communicate with devices on the Internet. IPv4 uses a 32-bit address space, which means that each IPv4 address consists of 32 binary digits or bits. These bits can be expressed in different notations, such as decimal, hexadecimal, or binary. The most common notation is the dot-decimal notation, which divides the 32 bits into four groups of eight bits, called octets, and separates them by periods. For example, the IPv4 address
172.16.254.1 is equivalent to the binary address 10101100.00010000.11111110.00000001. The 32-bit address space of IPv4 allows for 2^32or 4,294,967,296 possible addresses, but some of them are reserved for special purposes, such as private networks or multicast addresses12345 References: https://en.wikipedia.org/wiki/Internet_Protocol_version_4
https://www.geeksforgeeks.org/what-is-ipv4/

Explanation
A collision occurs when two or more devices try to transmit data at the same time on a shared medium, such as a bus or a hub. Collisions degrade network performance and cause data loss. Switches mitigate collisions by creating separate collision domains for each port. This means that each port can transmit and receive data without interfering with other ports. Switches also use full-duplex communication, which allows simultaneous transmission and reception of data on each port, further reducing the chances of collisions. VLANs and L3 protocols do not affect collisions, as they operate at different layers of the network model. Proprietary features are not a general characteristic of switches, and may not be compatible with other vendors’ switches. References: Aruba Certified Network Technician (ACNT) | HPE Aruba Networking, Aruba Documentation Portal

Explanation
The end command is used to exit from any configuration context and return to the manager context. The manager context is indicated by the # symbol at the end of the prompt. The manager context allows you to execute commands that do not require saving changes to the configuration, such as show or clear commands.
The disable command is used to exit from the manager context and return to the operator context, which is indicated by the > symbol. The quit and exit commands are used to exit from the current context and return to the parent context, such as from config-if to config. However, these commands do not move you directly to the manager context from any configuration context. Therefore, the correct answer is A.
end. References: Navigating to the manager context (#) – Aruba, Manager context (#) – Aruba

Explanation
The command to access the second interface of the third slot in a modular ArubaOS-CX switch is interface
1/3/2. This is because the interface numbering format for modular switches is interface slot/module/port, where slot is the chassis slot number, module is the module number within the slot, and port is the port number within the module1. The slot number starts from 1, the module number starts from 0, and the port number starts from 12. Therefore, the second interface of the third slot is interface 1/3/2. The other options are incorrect because they do not follow the correct interface numbering format. References: AOS-CX 10.06 Command-Line Interface Guide 8320, 8

Explanation
https://www.wi-fi.org/certification

Explanation

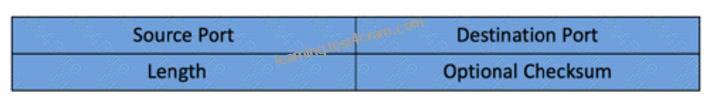

The header in the exhibit belongs to the User Datagram Protocol (UDP), which is a transport layer protocol that provides connectionless and unreliable data delivery. UDP header consists of four fields: Source Port, Destination Port, Length, and Checksum. The Source Port and Destination Port fields identify the endpoints of the communication, and are 16 bits each. The Length field specifies the total length of the UDP datagram, including the header and the data, and is also 16 bits. The Checksum field is used to verify the integrity of the UDP datagram, and is optional in IPv4 but mandatory in IPv6. The Checksum field is also 16 bits.
The other options are incorrect because:
B: Transmission Control Protocol (TCP) is another transport layer protocol that provides connection-oriented and reliable data delivery. TCP header has more fields than UDP header, such as Sequence Number, Acknowledgment Number, Window Size, etc. TCP header is at least 20 bytes long, while UDP header is only
8 bytes long.
C: 802.11 Wi-Fi is a set of standards for wireless local area networks (WLANs). 802.11 Wi-Fi header is different from UDP header, as it contains fields such as Frame Control, Duration, Address 1, Address 2, Address 3, etc. 802.11 Wi-Fi header is at least 24 bytes long, while UDP header is only 8 bytes long.
D: Ethernet Protocol is a data link layer protocol that defines the physical and logical characteristics of a wired network. Ethernet header is different from UDP header, as it contains fields such as Destination MAC Address, Source MAC Address, EtherType, etc. Ethernet header is 14 bytes long, while UDP header is 8 bytes long.
E: Internet Protocol (IP) is a network layer protocol that provides logical addressing and routing for data packets. IP header is different from UDP header, as it contains fields such as Version, Internet Header Length, Type of Service, Total Length, Identification, Flags, Fragment Offset, Time to Live, Protocol, Header Checksum, Source IP Address, Destination IP Address, etc. IP header is at least 20 bytes long, while UDP header is 8 bytes long. References:
* Aruba Certified Network Technician (ACNT) | HPE Aruba Networking
* User Datagram Protocol – Wikipedia
* Transmission Control Protocol – Wikipedia
* IEEE 802.11 – Wikipedia
* Ethernet frame – Wikipedia
* [IP header – Wikipedia]

Explanation

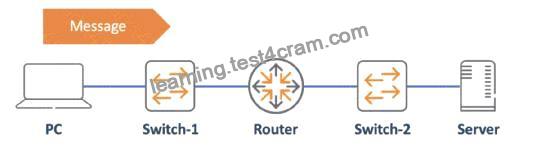

Layer 2 encapsulation is the process of adding a header and a trailer to the data coming from the upper layer (Layer 3) before sending it over the physical medium. The header and the trailer contain information such as source and destination MAC addresses, error detection, and protocol type. The devices that perform Layer 2 encapsulation are usually switches, bridges, or network interface cards (NICs). In the given network diagram, the PC is sending a message to the server. The PC first adds a Layer 2 header and trailer to the data and sends it to Switch-1. Switch-1 performs Layer 2 encapsulation again before forwarding it to the router. The router operates at Layer 3 and does not perform Layer 2 encapsulation. It only removes the Layer 2 header and trailer, checks the destination IP address, and forwards the packet to the next hop. The packet then reaches Switch-2, where Layer 2 encapsulation occurs again before it is sent to the server. The server also performs Layer 2 de-encapsulation by removing the header and trailer and passing the data to the upper layer. Therefore, the devices that have performed Layer 2 encapsulation by the time the message arrives at the server are Switch-1 and Switch-2. References: Understanding Data Link Layer Encapsulation, How Data Encapsulation
& De-encapsulation Works?, HDLC Protocol and Encapsulation method Explained

Explanation
A hardwire desktop PC belongs to the category of stationary devices, which are devices that are fixed in one location and do not move. Stationary devices typically have a constant power supply and a wired network connection. Examples of stationary devices are desktop PCs, servers, printers, and IP phones. Stationary devices are different from mobile devices, which are devices that can move from one location to another and connect to the network wirelessly. Mobile devices can be further classified into somewhat mobile devices, highly mobile devices, and intermittent mobile devices, depending on their mobility patterns and network requirements. Examples of mobile devices are laptops, tablets, smartphones, and wearable devices. References:
* Aruba Certified Network Technician (ACNT) | HPE Aruba Networking
* Aruba Documentation Portal

Explanation

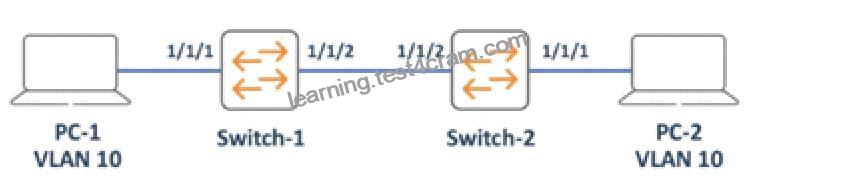

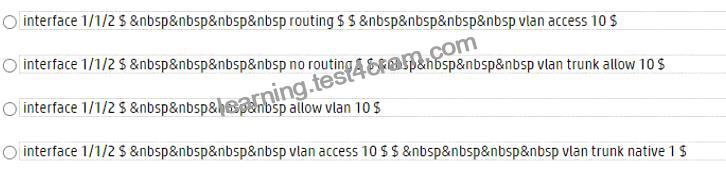

In order to allow inter-PC communication in the same broadcast domain, both switches need to have the same VLAN configured on the ports that connect to the PCs and the trunk port that connects to each other. Option B shows the correct configuration for both switches, as follows:
* On Switch-1, interface 0/1 is configured as an access port on VLAN 10, which matches the VLAN of PC-1. Interface 0/2 is configured as a trunk port, which allows VLAN 10 traffic to pass through to Switch-2.
* On Switch-2, interface 0/1 is configured as an access port on VLAN 10, which matches the VLAN of PC-2. Interface 0/2 is also configured as a trunk port, which allows VLAN 10 traffic to pass through from Switch-1.
Option A is incorrect because it does not configure the trunk port on Switch-2, which prevents VLAN 10 traffic from reaching Switch-1. Option C is incorrect because it configures the trunk port on Switch-1 with the wrong encapsulation mode (ISL instead of dot1q), which causes a mismatch with Switch-2. Option D is incorrect because it configures the access ports on Switch-2 with the wrong VLAN (20 instead of 10), which isolates PC-2 from PC-1.
References:
1: Layer 2 VLAN Configuration on a Cisco Switch (with Example) – Networks Training 2: VLAN Configuration Commands Step by Step Explained – Computer Networking Notes 3: How To Configure VLANs On the Catalyst Switches – Cisco Community 4: Configure VLAN on Cisco Switch Using Cisco Packet Tracer – TECHNIG
