Latest 2023 Realistic Verified 350-801 Dumps – 100% Free 350-801 Exam Dumps [Q62-Q81]

Rate this post

Latest 2023 Realistic Verified 350-801 Dumps – 100% Free 350-801 Exam Dumps

Get 2023 Updated Free Cisco 350-801 Exam Questions and Answer

NEW QUESTION 62

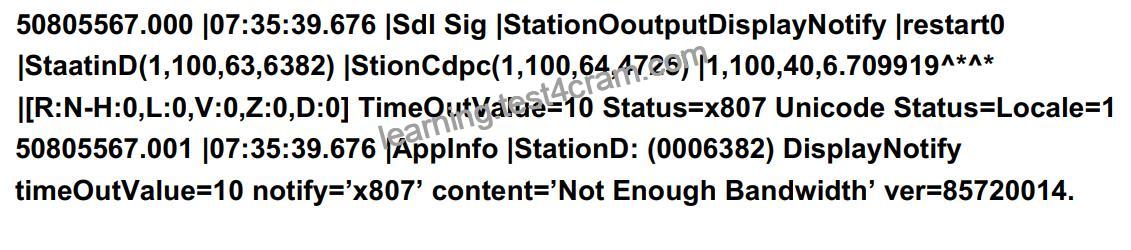

Callers from a branch report getting busy tones intermittetly when trying to reach colleagues in other office branches during peak hours. An engineer collects Cisco CallManager service traes to examine the situation. The traces show:

What should be fixed to resolve the issue?

class of service configuration

region configuration

geolocation configuration

codec configuration

NEW QUESTION 63
A Cisco collaboration engineer is troubleshooting unexpected SIP call disconnects. Which three responses correspond to the 5xx range (Chose three).

Server timeout

Bad request

Temporarily unavailable

Service unavailable

Forbidden

Version not supported

NEW QUESTION 64

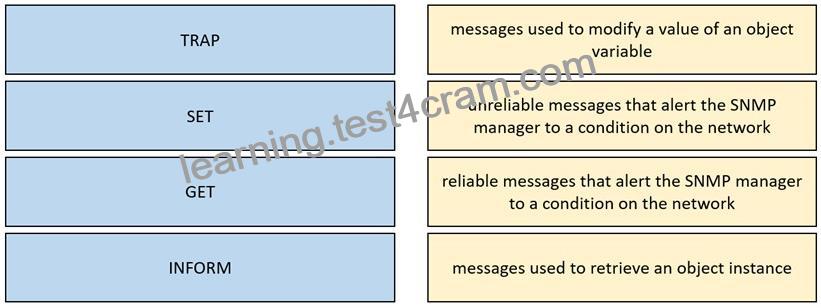

Drag and drop the SNMPv3 message types from the left onto the corresponding definitions on the right.

NEW QUESTION 65

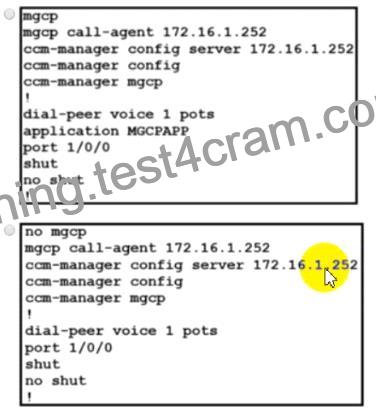

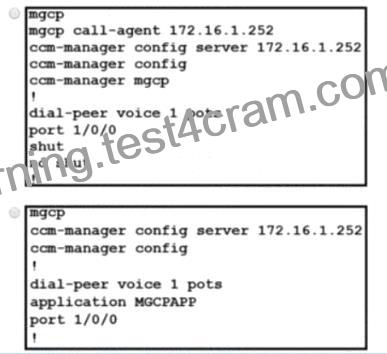

An engineer must manually register an analog port with cisco UCM using the MGCP protocol. Which commands are required?

Option A

Option B

Option C

Option D

NEW QUESTION 66
An engineer builds the configuration on a Cisco IOS gateway for the dial-peers:

Which command is required to complete the configuration?

Codec g726r32

Codec g729cr81

Codec g723ar63

Codec g711ulaw

NEW QUESTION 67
Which command is used in a Cisco IOS XE TDM gateway to configure the voice T1/E1 controller to provide clocking?

Clock source network

Clock source line

Clock source internal

Cisco IOS XE TDM gateway T1/E1 controller cannot provide clocking.

NEW QUESTION 68
Users want their mobile phones to be able to access their cisco unity connection mailboxes with only having to enter their voicemail pin at the login prompt calling pilot number, where should an engineer configure this feature?

message settings

greetings

alternate extensions

transfer rules

Alternate extensions can be used for extensions as well as remote numbers.

NEW QUESTION 69
Refer the exhibit.

Given this “debug isdn q921” output, what is the problem with the PRI?

Layer 1 is down on the controller.

PRI does not have an IP address configured on the interface.

Noting, the PRI is sending keepalives.

Layer 2 is down on the controller.

NEW QUESTION 70
What is the maximum one-way latency and jitter tor voice before quality issues arise?

≤ 150 ms Latency and ≤ 30 ms jitter

≤ 100 ms Latency and ≤ 10 ms jitter

≤ 300 ms Latency and ≤ 60 ms jitter

≤ 90 ms Latency and ≤ 30 ms jitter

NEW QUESTION 71
Which service on the Presence Server is responsible for maintaining the point-to-point chat connections between Jabber clients?

Cisco SIP Proxy

Cisco XCP Text Conference Manager

Cisco XCP Router

Cisco XCP XMPP Federation Manager

NEW QUESTION 72
Which recommendation is the best practice for marking video and voice media in a cisco Unified Communications network?
A)

B)

C)

D)

Option A

Option B

Option C

Option D

NEW QUESTION 73
A company’s employees have been complaining that they have been unable to select options on the internal IVR of the help desk IT support has been given Cisco UCM traces and below is the snippet of the SDP of the INVITE packet.

How is this issue resolved?

Configure CODEC for G.729

Configure DTMF for RFC 2833.

Configure CODEC for G 722

Configure DTMF for KPML

NEW QUESTION 74
Which issue causes slips on a PRI?

incorrect clock source

incorrect encapsulation

incorrectly configured time zone

change in the line code

NEW QUESTION 75
Which call routing pattern is used for phone numbers that are in the E.164 format?

/+.! Route Pattern

+.! Route pattern

+.! Translation pattern

+1. [2-9]XX[2-9]XXXXXXX called Party Transformation pattern

NEW QUESTION 76
An administrator needs to create a partial PRI consisting of the first seven timeslots available. Which configuration snippet configures the ISDN E1 PRI for this task?
A)

B)

C)

D)

Option A

Option B

Option C

Option D

NEW QUESTION 77
Cisco UCM delays routing of a call during digit analysis with an overlapping dial plan. How long is the default wait time?

5 seconds

10 seconds

15 seconds

20 seconds

NEW QUESTION 78

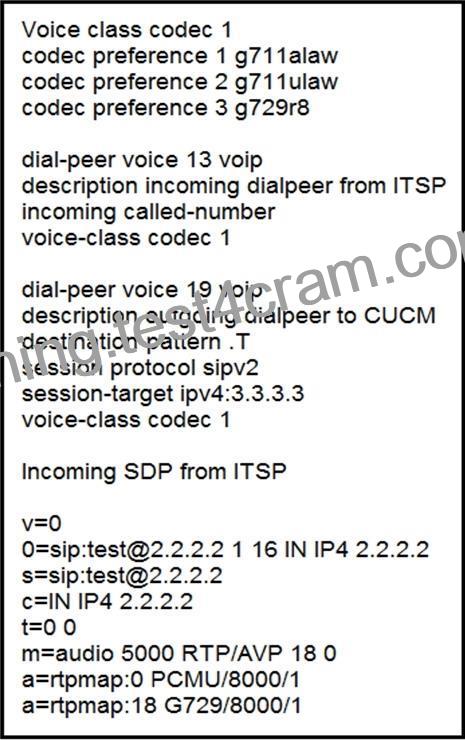

Refer to the exhibit. Which outgoing m-line SDP is sent to Cisco UCM after matching the appropriate dial peers via Cisco Unified Border Element?

m=audio 16550 RTP/AVP 0 8 18
a=rtpmap:0 PCMU/8000/1
a=rtpmap:8 PCMA/8000/1
a=rtpmap:18 G729/8000/1

m=audio 16550 RTP/AVP 18 0
a=rtpmap:0 PCMU/8000/1
a=rtpmap:18 G729/8000/1

m=audio 16550 RTP/AVP 8 0 18
a=rtpmap:0 PCMU/8000/1
a=rtpmap:8 PCMA/8000/1
a=rtpmap:18 G729/8000/1

m=audio 16550 RTP/AVP 18 0
a=rtpmap:8 PCMA/8000/1
a=rtpmap:0 PCMU/8000/1
a=rtpmap:18 G729/8000/1

NEW QUESTION 79
A Cisco IP Phone 7841 that is registered to a Cisco Unified Communications Manager with default configuration receives a call setup message. Which codec is negotiated when the SDP offer includes this line of text?
M=audio 498181 RTP/AVP 0 8 97

G.711ulaw

iLBC

G.711alaw

G.722

NEW QUESTION 80
Which two parameters influence the total number of supported conference participants on a Cisco IOS XE router that has DSP modules? (Choose two.)

voice codec

session capacity of the PVDM module

number of protocol data units

software version Of the router

license types

These are two parameters that influence the total number of supported conference participants on a Cisco IOS XE router that has DSP modules2. A voice codec is a software algorithm that compresses and decompresses voice signals for transmission over a network3. Different voice codecs have different bandwidth requirements and quality levels3. A PVDM module is a hardware component that provides digital signal processing (DSP) resources for voice applications such as conferencing and transcoding1. A PVDM module has a fixed session capacity, which is the maximum number of voice channels that it can support simultaneously1.

NEW QUESTION 81
When a remote office location is set up with limited bandwidth resources, which codec carries the most voice calls?

G.711

G.722

G.723

G.729

Explanation/Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/srnd/collab10/collab10/media.html
